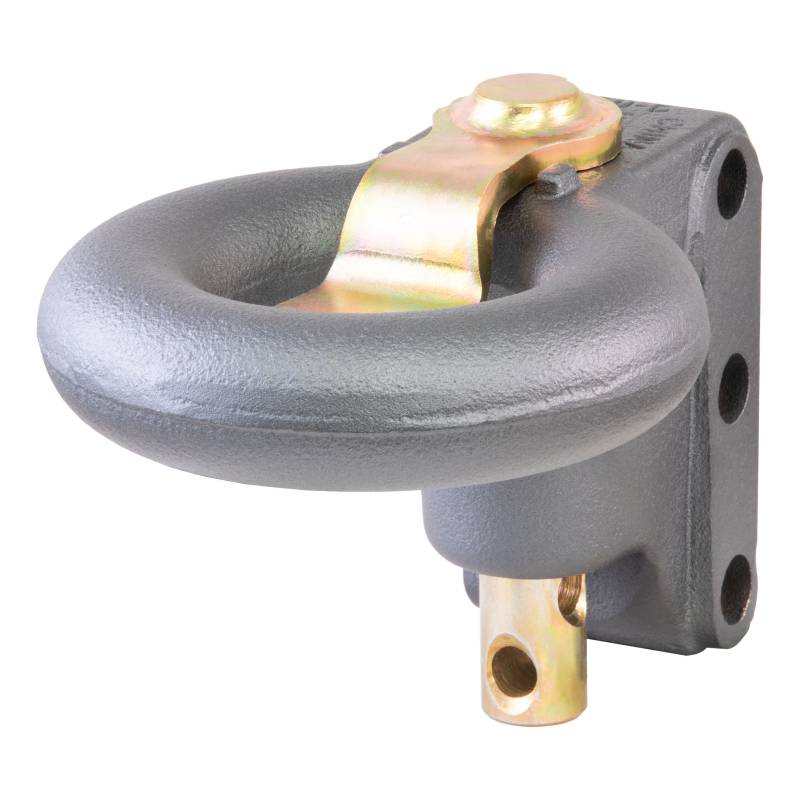

CURT SecureLatch Channel-Style Lunette Ring (40,000 lbs., 3" ID)

The CURT SecureLatch lunette ring offers enhanced security and maximum versatility. Its integrated locking pin helps prevent coupling and theft when your trailer is left unattended, featuring holes in the bottom to accept a padlock. The pin can also be turned 90 degrees to allow you to hitch up your trailer. This lunette ring also offers flexible height adjustment. It can be moved up or down for more drop or rise as needed. The CURT SecureLatch lunette ring is intended to fit an 11-3/4-inch x 2-3/4-inch inside width channel (sold separately). It has a three-hole bolt pattern. The lunette ring itself has a 3-inch inside diameter to couple to a pintle hook or ball and pintle combination, and it is rated for up to 40,000 pounds gross trailer weight. This SecureLatch lunette eyelet is made from austempered iron for superior strength and wear resistance, and it features a durable, dark grey teridium powder coat finish for resistance to the elements.

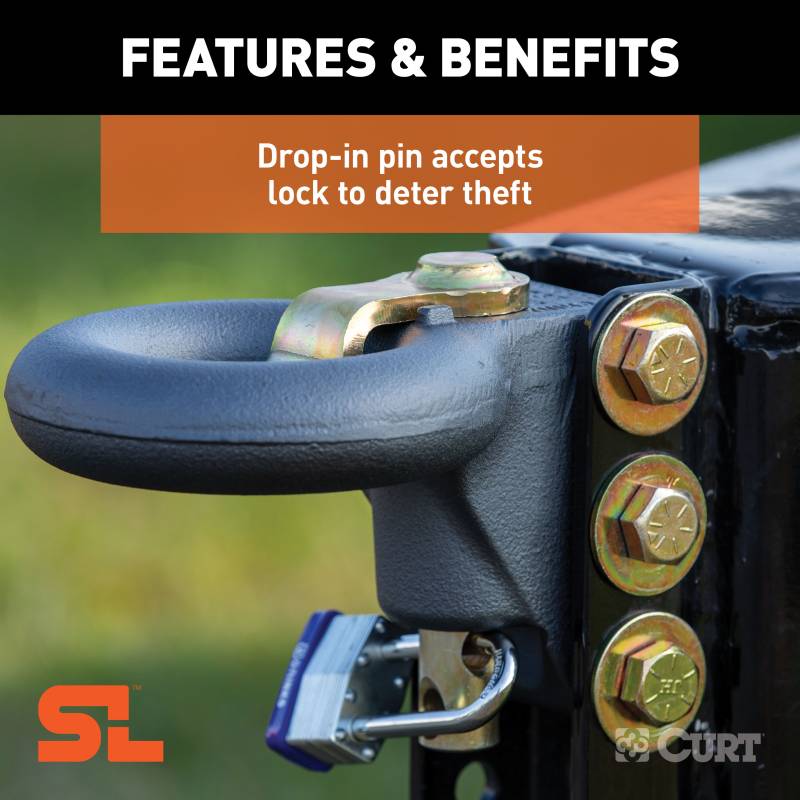

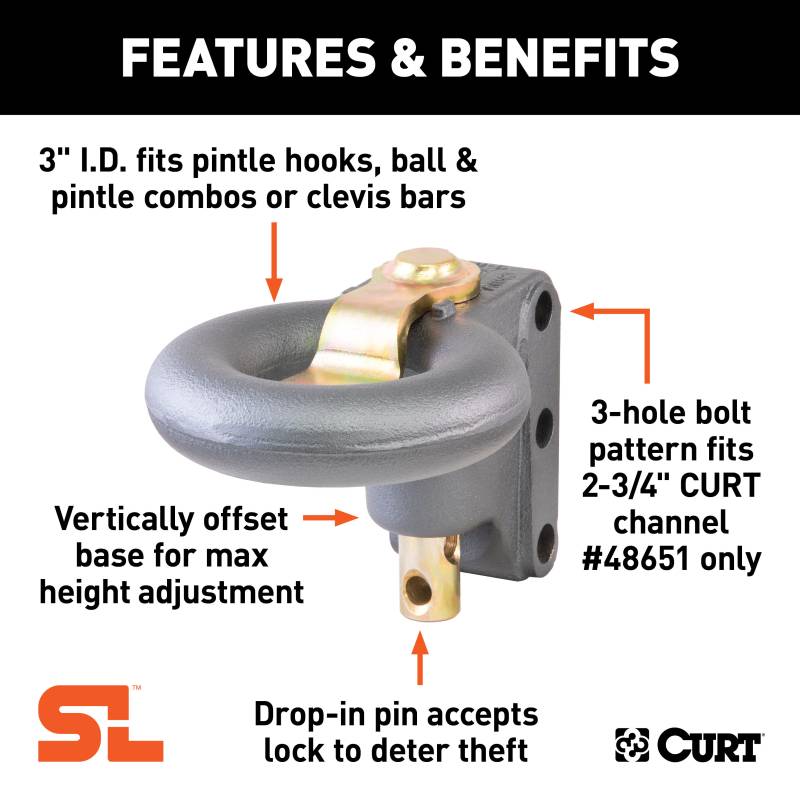

• Drop-in pin accepts lock to deter theft (turns 90 degrees while coupled)
• Flexible height adjustment for more drop or rise as needed (channel required)

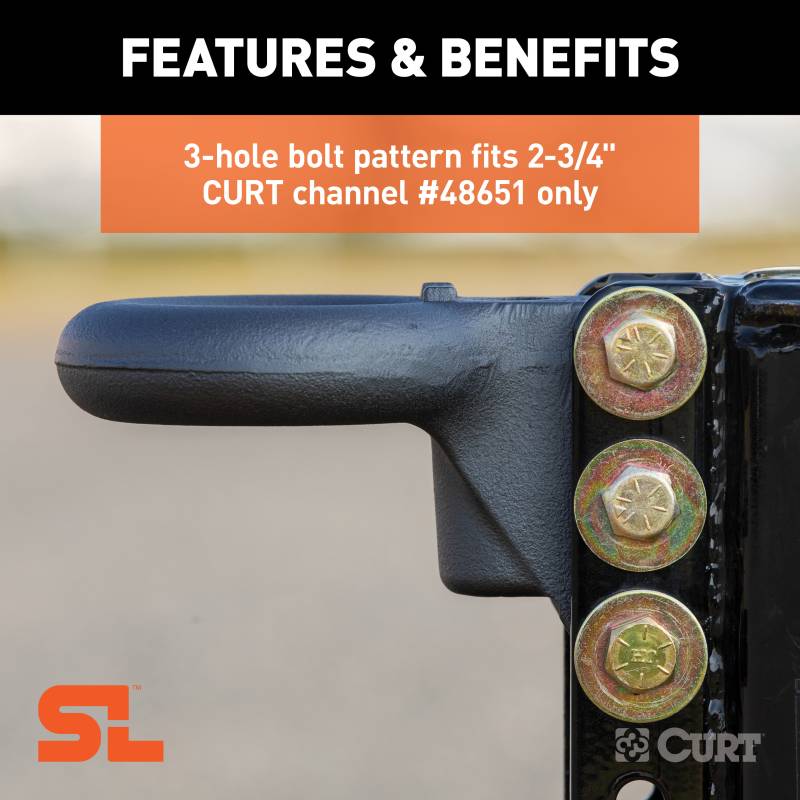

• Heavy-duty 3-hole bolt pattern fits 11-3/4" x 2-3/4" channel only (#48651)

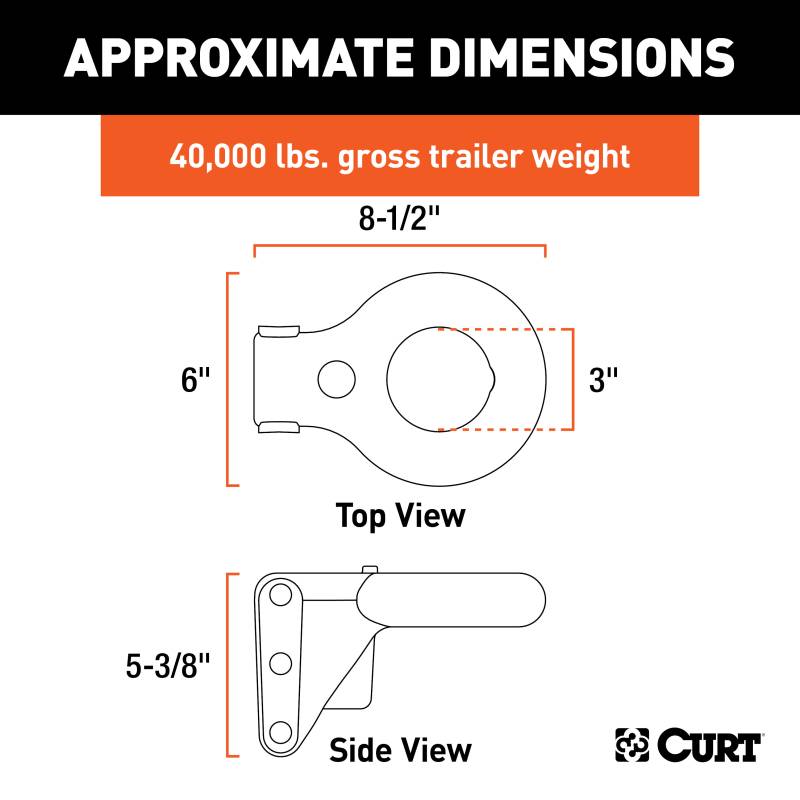

• Rated for 40,000 lbs. gross trailer weight

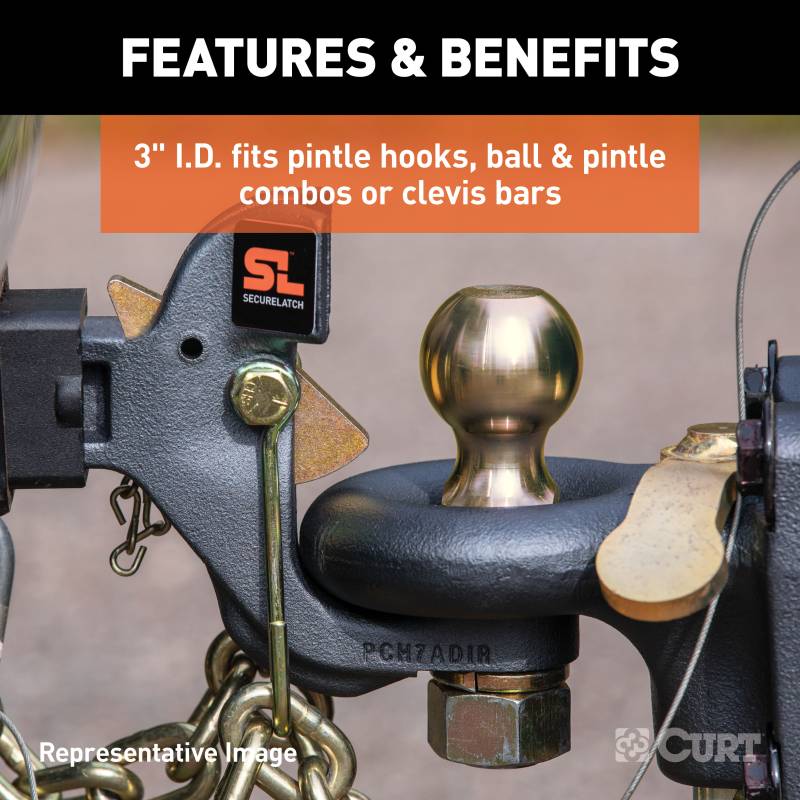

• 3" inside diameter fits pintle hooks, ball & pintle combinations or clevis bars
• Cast iron construction is austempered for superior strength and wear resistance

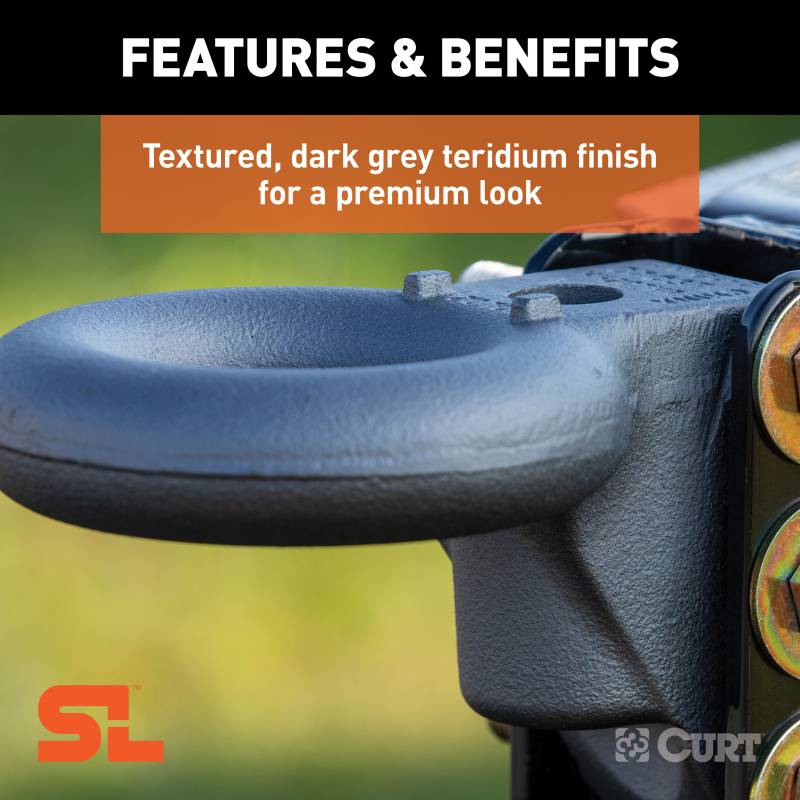

• Textured, dark grey teridium powder coat for a premium finish
• Bright gold zinc-plated pin for long-lasting corrosion resistance
• Limited lifetime warranty (one-year finish, one-year parts)

Note:

• SecureLatch channel #48651 required for installation (sold separately)
• U.S. patent# 5,527,356; Canadian patent# 2,823,001; Australian patent# 2014305601
