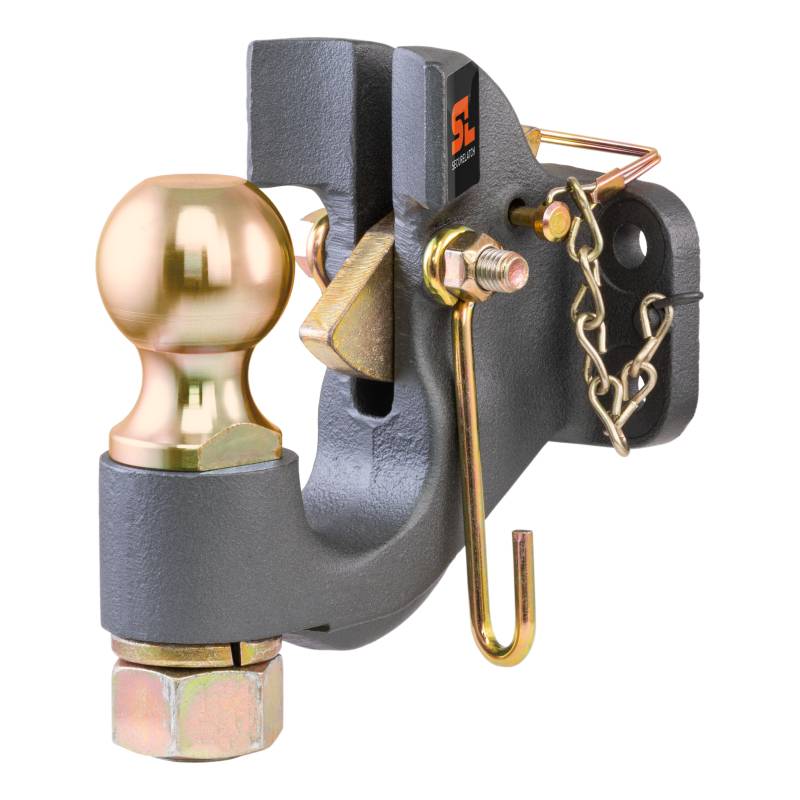

CURT SecureLatch Ball & Pintle Hitch (2-5/16" Ball, 20,000 lbs.)

Enjoy automatic trailer coupling with the unique auto-locking mechanism of this SecureLatch pintle hitch. Just back up to the trailer tongue -- the integrated striker plate helps stop and center the lunette ring. Drop the ring onto the ball and hook, and the SecureLatch mechanism automatically engages the primary lock. Just insert the secondary safety pin and you're ready to tow. This unique pintle ball hitch also has a cupped design to hold the lunette eyelet more tightly and deter chucking noises. This ball and pintle combo is rated for 20,000 pounds gross trailer weight, 14,000 pounds ball capacity and is constructed from austempered cast iron for superior strength and wear resistance. It has a standard 2-5/16-inch ball and fits 2-1/2-inch or 3-inch lunette rings. NOTE: SecureLatch slotted pintle mount required for installation (pintle mount and bolts sold separately).

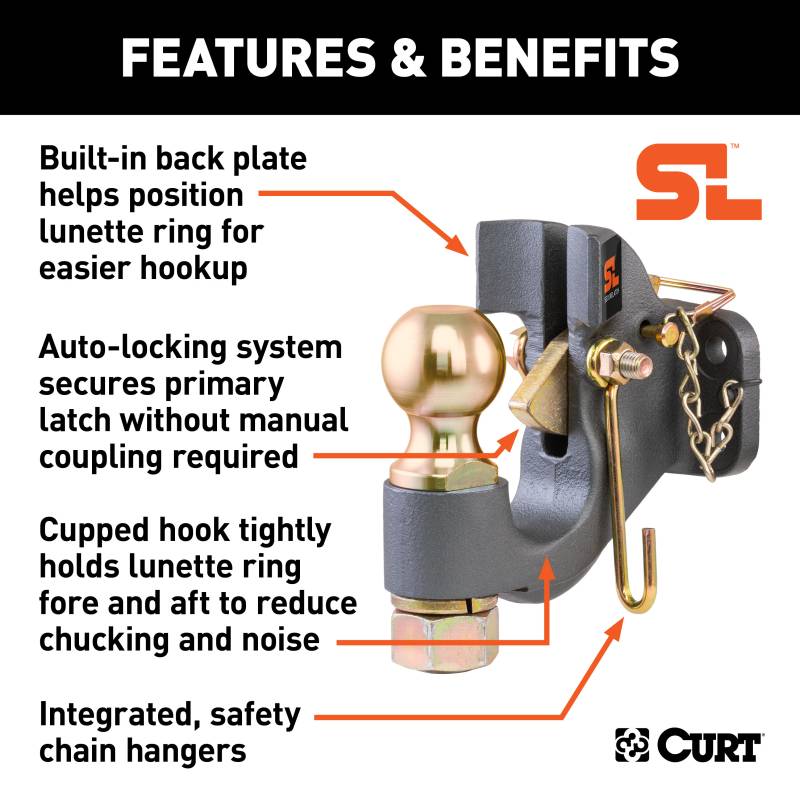

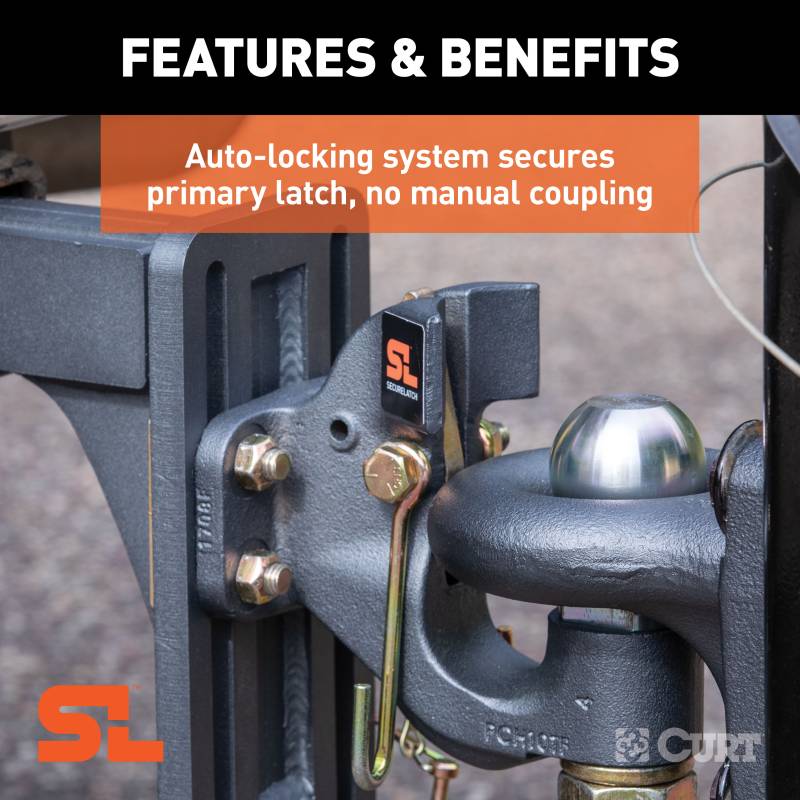

• Auto-locking system secures primary latch without manual coupling required

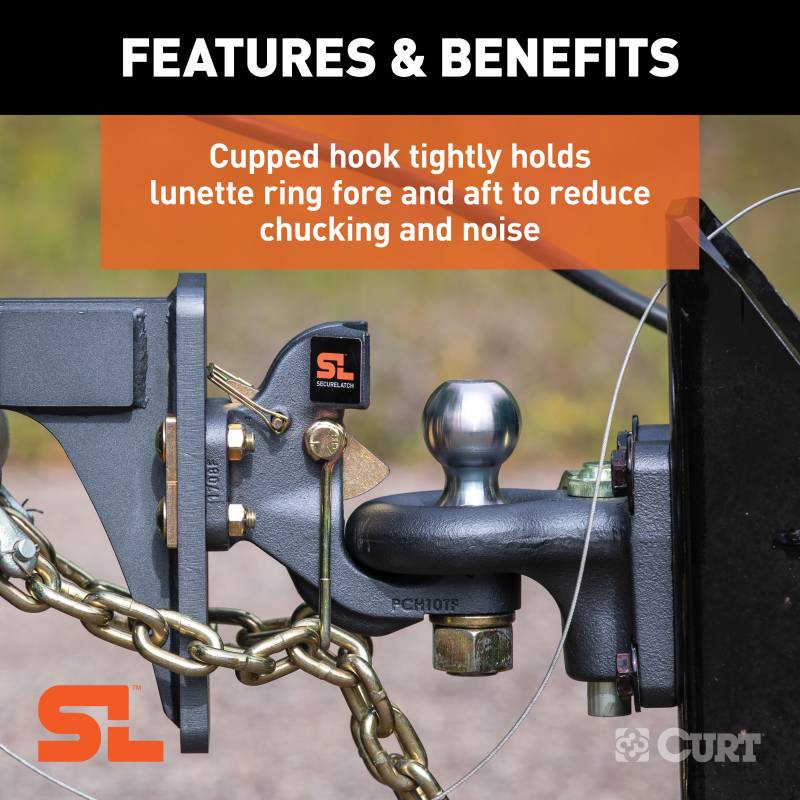

• Cupped hook tightly holds lunette ring fore and aft to reduce chucking and noise

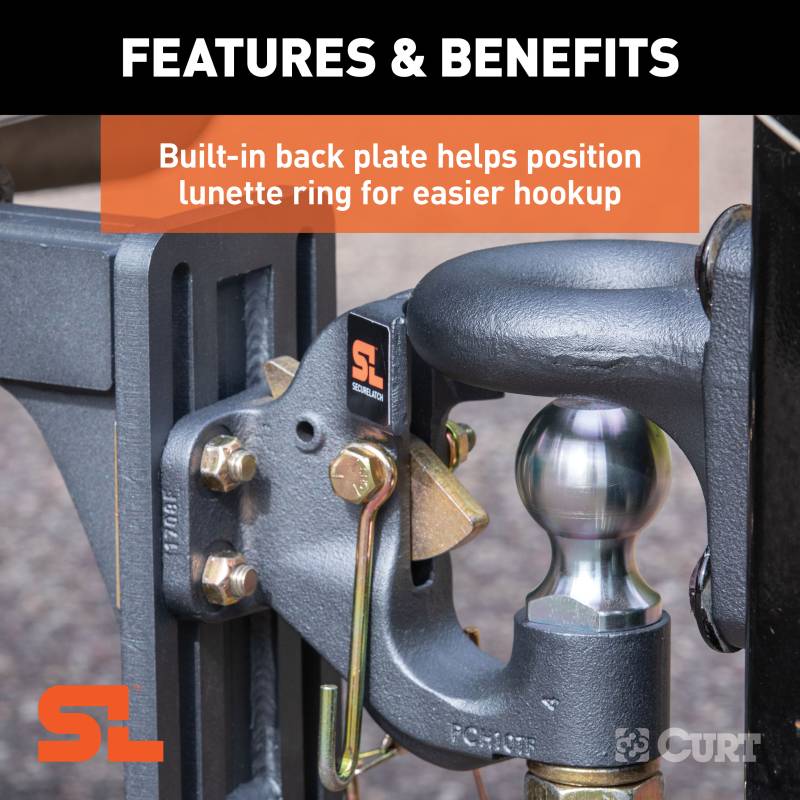

• Built-in back plate helps position coupler or lunette ring for easier hookup
• Fits SecureLatch pintle mounts with slotted plate (sold separately)
• Quick, easy, one-tool height adjustments -- no disassembly required

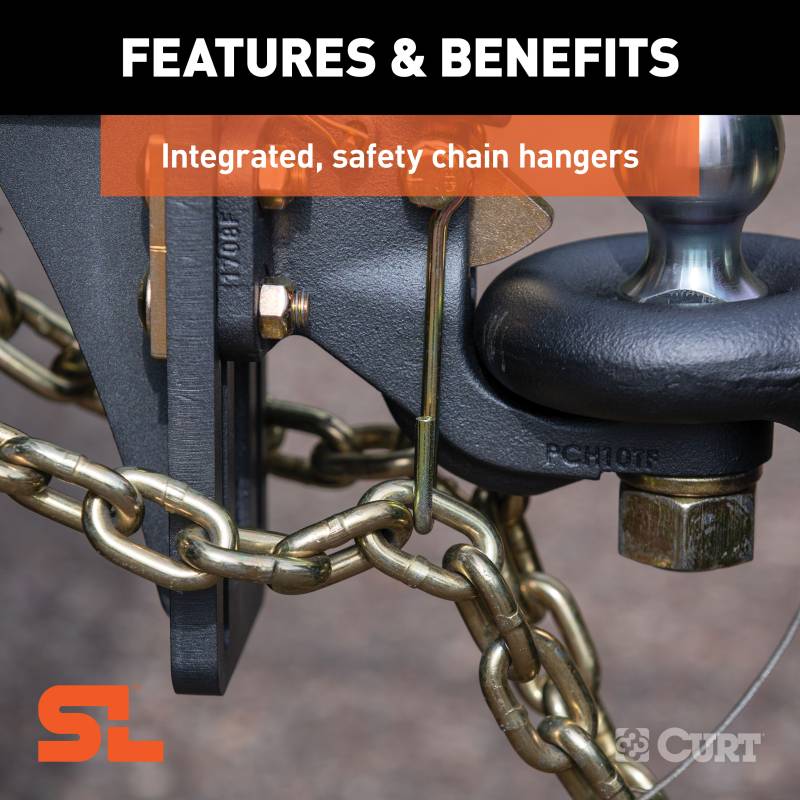

• Integrated, intermediate safety chain hangers keep chains off the ground

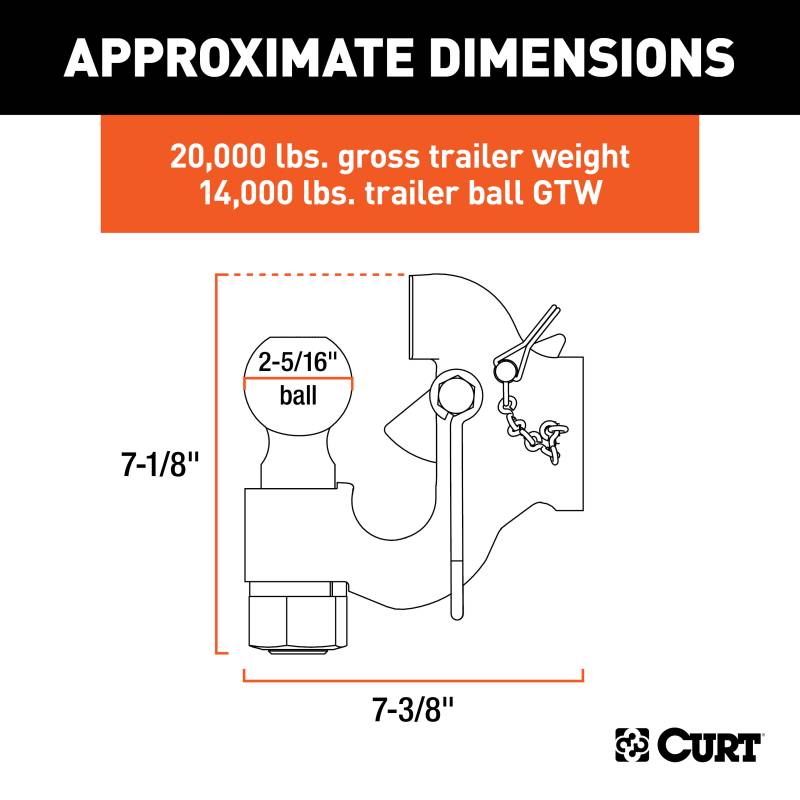

• Rated for 20,000 lbs. gross trailer weight and 14,000 lbs. ball capacity
• Couples to 2-5/16" couplers or lunette eyes with a 2-1/2" or 3" inside diameter
• Latch can be pinned in open position to clear standard trailer coupler
• Cast iron construction is austempered for superior strength and wear resistance

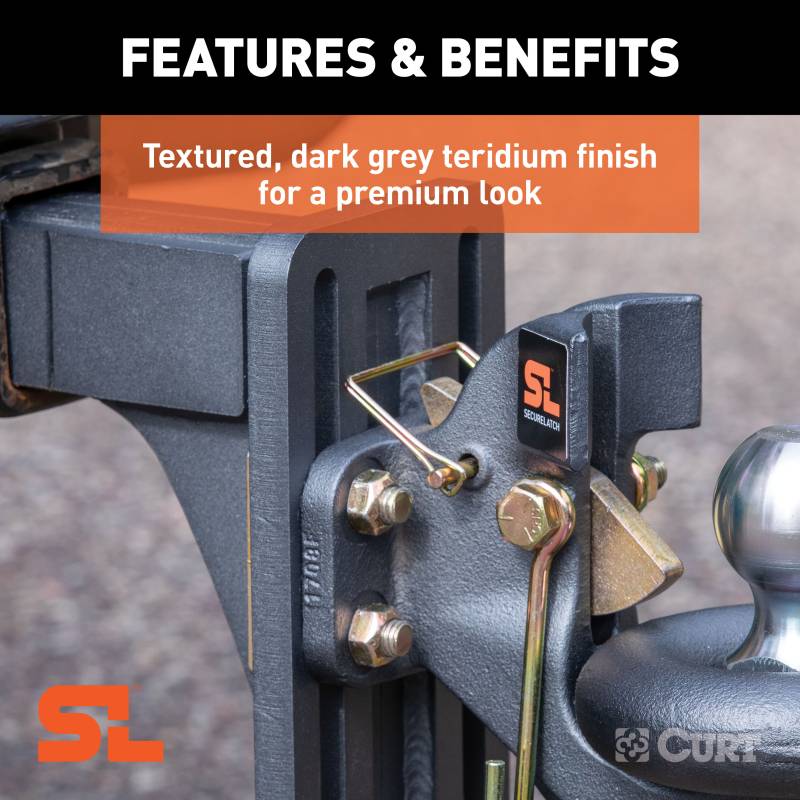

• Textured, dark grey teridium powder coat for a premium finish
• Bright zinc-plated hardware for corrosion resistance (mount bolts not included)
• Limited lifetime warranty (one-year finish, one-year parts)

Note:

• SecureLatch pintle mount and bolts required for installation (sold separately)
• Safety pin must be installed before towing
• U.S. patent# 9,789,742; Canadian patent# 2,836,683, 3,040,259 and 3,044,875; Australian patent# 2014366795; European patent# 14871983.4
